Column-free space matters because it lets an aircraft hangar change later without being rebuilt. The perimeter frame carries every load that would normally land on an interior post, and that one design choice ripples through everything else. It shapes how the frame goes together, what the foundation has to resist, and what the building ends up costing.
What Is a Clear Span Aircraft Hangar?

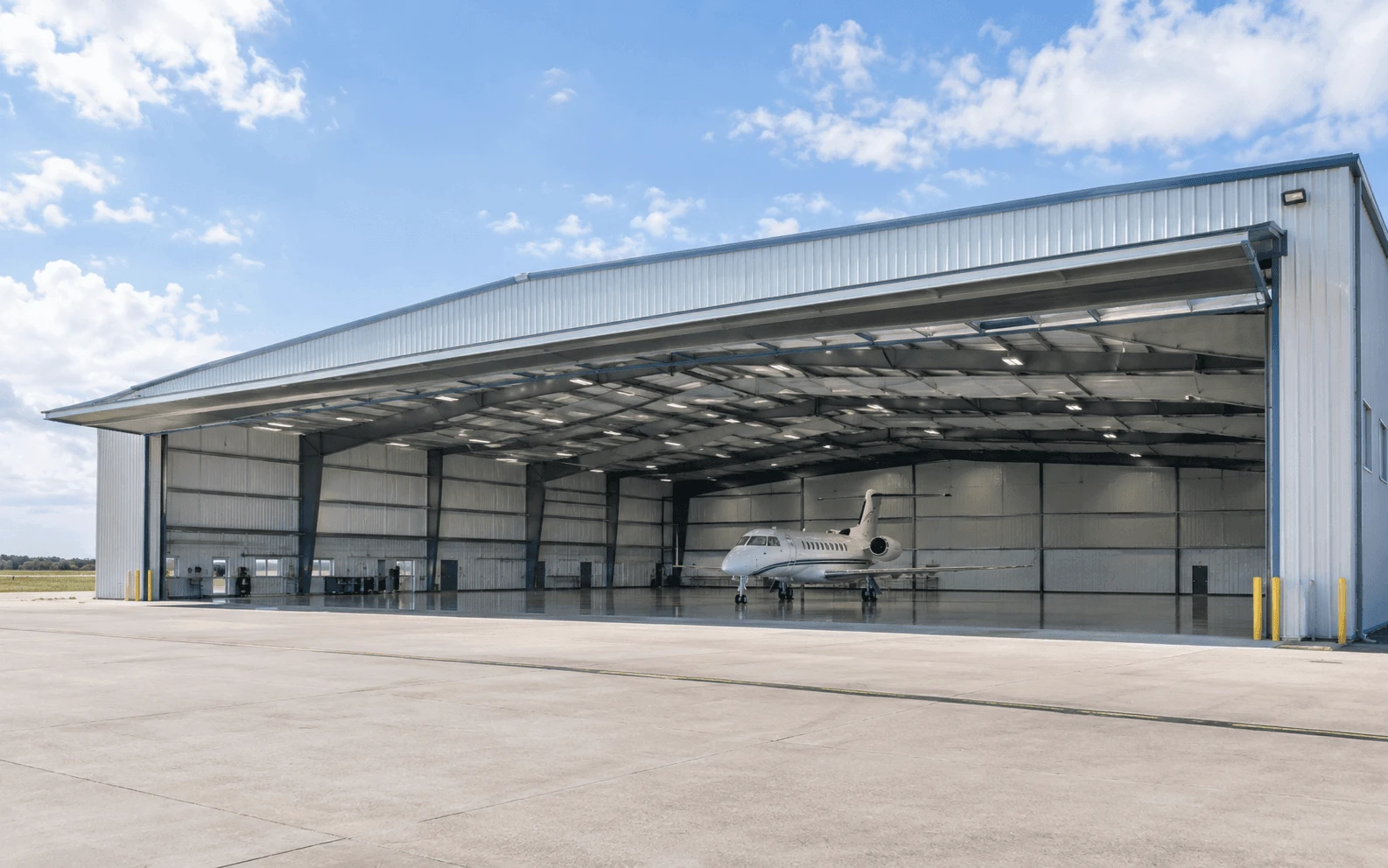

A clear span aircraft hangar carries its roof load entirely through the perimeter frame. Nothing interrupts the floor between the walls. A conventional multi-column steel building splits that same load across interior supports instead. Cheaper, but it leaves obstructions in the middle of the floor.
Not every hangar needs this. A single light aircraft in one bay rarely does, since the plane's own footprint already leaves room to work around a column. The floor has to stay open for something bigger, or for more than one aircraft at once, before clear span actually pays for itself.
What Structural Systems Create a Clear Span?
Several structural systems can create a clear span, but rigid frames and trusses cover most hangar projects. Rigid frames use tapered or welded steel members connected at rigid knees. These knees transfer roof and wall loads straight down to the foundations.
Trusses often start beating rigid frames on steel weight as span grows. A truss spreads the same load across many members instead of stacking it into one deep beam. That crossover point shifts with fabrication cost and shipping limits, not span alone.
It's worth checking both options rather than assuming a wider building automatically needs a truss. In practice, our engineers default to a rigid frame based on project history. They run a full truss comparison only when a project specifically calls for it.
Arch systems are less common in hangars. They still suit very wide openings, especially where eave height matters less than it does for tall-tailed aircraft.
How Far Can a Clear Span Actually Reach?
As span increases, rigid frames often become less economical. Deflection, not strength, starts controlling the design. Codes cap roof deflection well before the frame would actually fail. So a wider span usually means adding steel to stop the roof from sagging, not to stop it from collapsing.
Snow load, wind load, frame spacing, roof geometry, and eave height all shift that threshold. A building in a heavy-snow region reaches its economical span limit sooner than the same design would in a milder climate. We collect the project's local wind and snow load data before finalizing the frame. Guessing at those numbers either wastes steel or leaves the structure short of what the site actually needs.
One small aircraft in a single bay rarely tests this ceiling. A wide business jet hangar hits it directly, and that's where frame choice starts to matter.
Most prefab steel aircraft hangars fall into a few common clear span ranges:
| Common Clear Span
|
Typical Aircraft
|
|---|---|
| 40–60 ft | Small single-engine aircraft |
| 60–100 ft | Light twin-engine aircraft, small turboprops |
| 100–150 ft | Light to midsize jets |
| 150–200+ ft |
Business jets, larger aircraft, or special-use aircraft
|
These ranges work as an early planning reference, not a fixed design standard. The actual span should come from an engineer, based on wingspan, fuselage length, tail height, door size, how many aircraft need to fit, maintenance space, and local wind load, snow load, and building code requirements.
How Do Hangar Doors Affect the Clear Span Frame?
A wide hangar door cuts a chunk out of the frame's front wall. The header above it has to carry that opening's load and hand it down to the jamb columns on either side. Widen the door, and the load path around the opening shifts, often pushing more demand onto the header, jambs, and connections. That's why we lock in the door size before finalizing the frame, not after.
We confirm clear opening, aircraft dimensions, and door type before finalizing the steel frame. A wider opening still ripples into the header, the jambs, and the foundation reactions below them.
The real benefit isn't extra floor area. It's predictable clearance: owners can position, move, or service aircraft without building the layout around fixed interior supports.
How Does a Clear Span Change the Foundation Design?
Remove the interior columns, and the load they used to carry doesn't vanish. It moves to the perimeter instead. The eave columns and frame base then take higher reactions than a multi-column design of the same footprint would have.
Rigid frames also push horizontal reactions into the column bases. Something has to resist that. Options include the frame-foundation connection, the foundation geometry, tie systems, or some combination of the three. The frame design, the soil, and how the owner uses the floor decide which one wins.
At What Span Does Clear Span Cost More?
As clear span increases, the frame usually needs more steel. In some cases, it needs an entirely different structural system to keep strength and deflection in check. Floor area alone doesn't drive that cost increase.
At smaller spans, the premium for going column-free stays modest. At larger spans, the frame, connections, and foundations start eating a much bigger share of the budget.
No single span number marks where clear span suddenly gets expensive. Load, frame spacing, door size, and foundation system decide that. So does how much open floor the project actually needs.
Those variables, not a fixed price point, decide whether clear span is worth the money. One aircraft in a modest bay: a columned steel aircraft hangar usually covers it for less. Multiple aircraft, a wide jet, or planned maintenance space: the added cost buys room that absorbs more layout changes than a columned structure can.
We itemize frame, foundation, and door costs separately in every quote. That makes a comparison against another builder's number actually apples to apples. A lower bid on a "clear span" hangar sometimes just means a smaller door or a more conservative span. It isn't always a better price for the same building.
What Building Codes Limit Clear Span Design?
Aircraft hangars must also meet fire-protection codes, including NFPA 409 in the U.S. Depending on the aircraft, hangar type, and jurisdiction, these rules can affect fire protection systems, separation, and the overall floor plan.
A frame capable of a large clear span doesn't guarantee the layout stays undivided. The final building still has to meet whatever code applies to the project. We design the steel frame to the loads and geometry provided. Confirming the hangar's fire and occupancy category against local code normally falls to the project's architect or engineer of record, not the frame supplier.
Drawings verify a clear-span claim better than a brochure does. A true clear-span layout shows the intended floor area with no interior structural columns anywhere on the plan.
Why Does Column-Free Space Actually Matter?
Strip away the engineering, and column-free space comes down to one thing: what an owner can still do later without touching the frame. If the owner later adds another aircraft, brings in maintenance equipment, or upgrades to a wider airframe, none of it usually forces the rebuild a fixed-column layout would eventually require.
A clear span hangar has to balance usable space, aircraft movement, structural loads, and site requirements. CNSS designs, fabricates, and supports custom steel buildings, so we plan the frame around your actual aircraft and site conditions. Send an inquiry to talk through your span, building size, door opening, and project location.
